Hydraulic Press 16/20 tonnes, for car workshops and light industrial

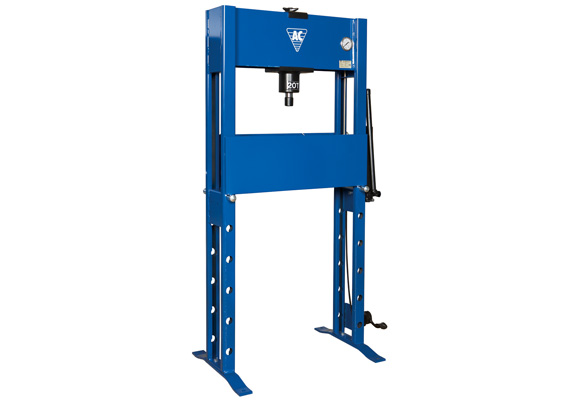

The AC PJ16H / PJ20H hydraulic presses 16/20tonnes,

The AC Hydraulic PJ16H & PJ20H Workshop presses, are an exceptionally well manufactured hydraulic press designed for use in a car workshop or light industrial environment.

This models available in two different lifting capacities 16t - 20t.

Both models enjoy the following specification :

  • Foot-operated pneumatically controlled high speed and precise ram approach to work piece
  • Traversing ram
  • Built-in pressure gauge at convenient eye level
  • Built-in safety overload valve
  • Welded frame and press table made from high strength steel for long life
  • Removable ram end cap for mounting of various piston heads
  • Supplied with 2 vee blocks





Technical data


PJ16H
PJ20H
Capacity
16 t
20 t
Stroke
150 mm
150 mm
Height
1620 mm
1620 mm
Width
885 mm
885 mm
Width between legs
640 mm
640 mm
Depth between legs
130 mm
130 mm
Clearance
105 - 780 mm
105 - 780 mm
Weight
130 kg
130 kg

Selection of Accessories available, if required - see below :

Part No : 76 100 00. PJW - Winch conversion



  • Enables efficient and easy adjustment of press table.

Part No : 75 006 00 is PJS - Set of Press Tools



  • Press plate with 3 piston heads (Ø 12, 20, 30 mm and adaptors)

Part No : 70 177 60.    Protection Screen for Optimum Safety

  • Designed for maximum operator safety and fits all our presses
  • Steel mesh with shatterproof plexi glass
  • Protection screen with extreme high breakage point
  • Fitted with two handles and gas springs for infinitely variable positioning
  • Can be adjusted according to required working height
  • In conformity with the CE regulation according to Machine Directive 2006/42/EC
  • Different screens for all our presses
  • Download product brochure
