Hydraulic Press 25 tonnes, for car workshops and light industrial use


The AC PJ25H hydraulic press 25 tonnes,

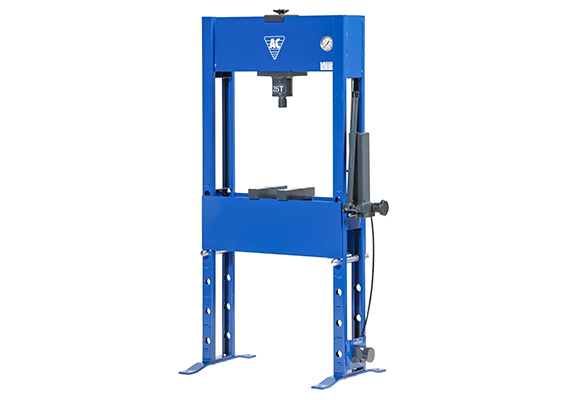

The AC Hydraulic PJ25H Workshop press, is an exceptionally well manufactured hydraulic press designed for use in a car workshop or light industrial environment.

This model has a 25 tonne capacity.

And enjoys the following specification :

  • Foot-operated pneumatically controlled high speed and precise ram approach to work piece
  • Traversing ram
  • Built-in pressure gauge at convenient eye level
  • Built-in safety overload valve
  • Welded frame and press table made from high strength steel for long life
  • Removable ram end cap for mounting of various piston heads
  • Supplied with 2 vee blocks





Technical data


PJ25H

Capacity
25 t

Stroke
150 mm

Height
1620 mm

Width
885 mm

Width between legs
640 mm

Depth between legs
130 mm

Clearance
105 - 780 mm

Weight
135 kg


Selection of Accessories available, if required - see below :

Part No : 76 100 00. PJW - Winch conversion



  • Enables efficient and easy adjustment of press table.

Part No : 75 006 00 is PJS - Set of Press Tools



  • Press plate with 3 piston heads (Ø 12, 20, 30 mm and adaptors)

Part No : 70 177 60.    Protection Screen for Optimum Safety

  • Designed for maximum operator safety and fits all our presses
  • Steel mesh with shatterproof plexi glass
  • Protection screen with extreme high breakage point
  • Fitted with two handles and gas springs for infinitely variable positioning
  • Can be adjusted according to required working height
  • In conformity with the CE regulation according to Machine Directive 2006/42/EC
  • Different screens for all our presses
  • Download product brochure
