Hydraulic Press 40 tonnes, for truck workshops and industrial use

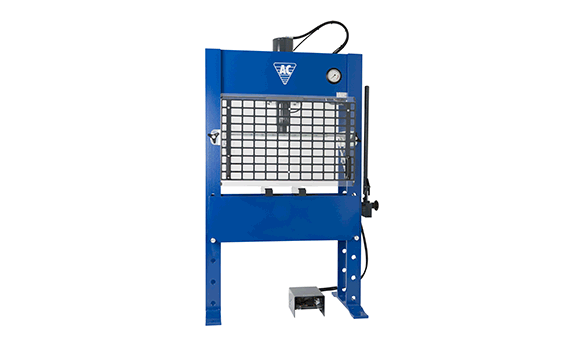

The AC P40H hydraulic press 40 tonnes,

The AC Hydraulic P40H Workshop press, is an exceptionally well manufactured hydraulic press designed for use in truck workshops or a heavy industrial environment.

This model has a 40 tonne capacity.

And enjoys the following specification :

  • Foot-operated double-acting pneumatically controlled high speed leaving both hands free for quick and precise positioning of item
  • Traversing ram
  • With 300 mm stroke for dealing with demanding jobs
  • Built-in pressure gauge at convenient eye level
  • Wide, welded frame and press table ensuring high flexibility
  • Winch operated press table
  • Built-in safety overload valve
  • Removable ram end cap for mounting of various piston heads
  • Supplied with 2 vee blocks





Technical data


P40H
Capacity
40 t
Stroke
300 mm
Height
1740 mm
Width
1190 mm
Width between legs
850 mm
Depth between legs
215 mm
Clearance
85 - 785 mm
Weight
425 kg


Selection of Accessories available, if required - see below :

Part No : 70 010 00.    PS - Set of Press Tools



  • Press plate with set of piston heads (Ø 10, 12, 15, 17, 20, 22, 25, 30 mm, adaptor and rack)

Part No : 70 177 00.    Protection Screen for Optimum Safety

  • Designed for maximum operator safety and fits all our presses
  • Steel mesh with shatterproof plexi glass
  • Protection screen with extreme high breakage point
  • Fitted with two handles and gas springs for infinitely variable positioning
  • Can be adjusted according to required working height
  • In conformity with the CE regulation according to Machine Directive 2006/42/EC
  • Different screens for all our presses
  • Download product brochure
