Hydraulic Press 60 tonne "electro hydraulic" for truck workshops

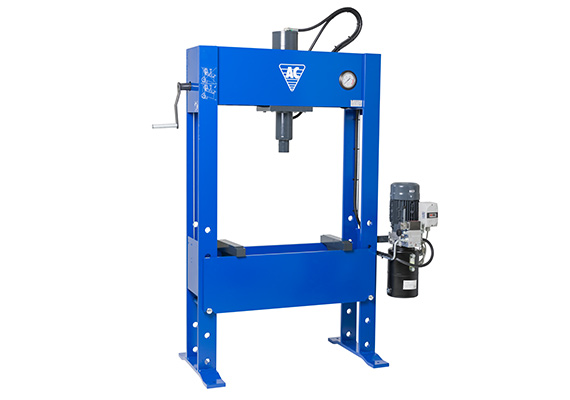

The AC P60EH1 & P60EH2 "electro-hydraulic" presses 60 tonnes,

The AC Hydraulic P60EH1 & EH2  Workshop presses, are exceptionally well manufactured hydraulic presses, designed for use in truck workshops or a heavy industrial environment, the biggest advantage of this press is its electro-hydraulic in operation.

These models have a 60 tonne capacity.

And enjoys the following specification :

  • P60EH1: Single stage pump
  • Press speed: 4,2 mm/sec
  • P60EH2: 2-stage pump
  • Press speed: 10,0 mm/sec
  • The pressure can be set to any required tonnage up to 60 t
  • Traversing double-acting ram with long stroke of 300 mm
  • Built-in pressure gauge at convenient eye level
  • Winch operated press table
  • Removable ram end cap for mounting of various piston heads
  • The motor is 3x400V and 50/60 Hz (can be switched for 3x230V)
  • Supplied with 2 vee blocks





Technical data


P60EH1
P60EH2
Weight
630 kg
635 kg
Capacity
60 t
60 t
Stroke
300 mm
300 mm
Height
1980 mm
1980 mm
Width with motor
1555 mm
1555 mm
Width between legs
1010 mm
1010 mm
Depth between legs
259 mm
259 mm
Clearance
180 - 780 mm
180 - 780 mm
Press speed
4,2 mm/s
10,0 mm/s
Return speed
5,9 mm/s
14,5 mm/s


Selection of Accessories available, if required - see below :

Part No : 70 010 00.    PS - Set of Press Tools



  • Press plate with set of piston heads (Ø 10, 12, 15, 17, 20, 22, 25, 30 mm, adaptor and rack)

Part No : 70 177 80.    Protection Screen for Optimum Safety

  • Designed for maximum operator safety and fits all our presses
  • Steel mesh with shatterproof plexi glass
  • Protection screen with extreme high breakage point
  • Fitted with two handles and gas springs for infinitely variable positioning
  • Can be adjusted according to required working height
  • In conformity with the CE regulation according to Machine Directive 2006/42/EC
  • Different screens for all our presses
  • Download product brochure
