AC Hydraulics GD-1 Air hydraulic Single Ram Pit Jack (10-20 tonnes)

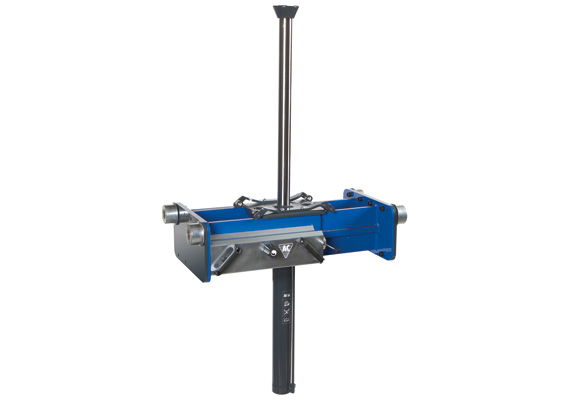

The AC Hydraulic GD-1M is a standard model single ram pit jack,  exceptionally well manufactured hydraulic pit jack featuring only one ram as preferred but some technicians for certain repairs, a large number of accessories are available to enable maximum use from this particular jacking beam.

This model is available in three different lifting capacities 10t - 15t - 20t.

The GD1 enjoys the following specification :

  • Rapid and precise air hydraulic unit with high speed ram travel
  • Simple modern design with control panel at ergonomical working height
  • Can be made to fit all pits due to its adjustable frame
  • Frame height is adjusted and set to the customers individual specifications
  • Fitted with leaf spring support bearings for easy glide transversing ram
  • Comprehensive option range: cross beam, gearbox saddle, support bridge etc.
  • When ordering fill out specification form




Dimensions


Technical data


GD100-1
GD150-1
GD200-1




Capacity
10 t
15 t
20 t
Stroke
800 mm
800 mm
800 mm
Min. height
1020 mm
1020 mm
1020 mm
Max. height
1820 mm
1820 mm
1820 mm
Width¹
590-1410 mm
590-1410 mm
590-1410 mm
Depth
665 mm
665 mm

Air supply
8-12 bar
8-12 bar
8-12 bar
Air consumption
350 l/min
350 l/min
350 l/min
Weight
220 kg
220 kg
220 kg

¹ Framewidth: 590-890 mm / 850-1150 mm / 1110-1410 mm

Selection of adaptors available, if required - see below :

AB Support Bridge - 20t capacity




AB Support Bridge - 20t capacity

  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form



ABT Support Bridge - 20t capacity



ABT Support Bridge - 15t capacity
  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form



S200 Integrated Safety Stand

  • Integrated safety stand
  • Capacity: 20 t
  • Mechanical locking of the load prevents unintended lowering
  • Adjustable in 6 positions
  • Increases the minimum height of the pit jack by 65 mm

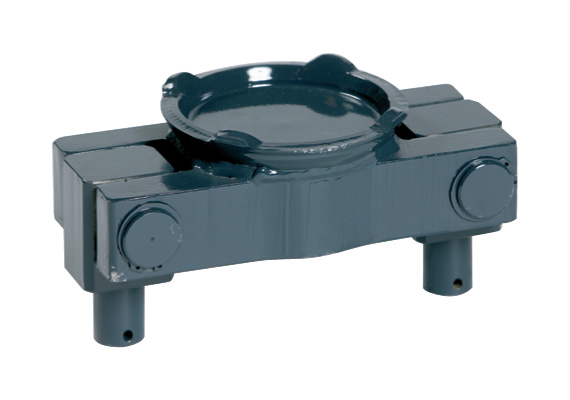

AS-3 Gearbox Saddle

  • Capacity: 1 t
  • Dimension: 542x385x110 mm
  • 10º tilt in all directions for accurate dismounting and re-mounting of gearboxes
  • Low minimum height for wide range of applications
  • Fitted with 2 straps and 4 magnetic rubber support blocks
  • Weight: 24 kg
  • Fits: GD-1, GGD, GDT, VL10, VLT6 & VLT12

Cross Beam Adaptors - T4-1 / T4-2 / T4-1W / T4-2W





Cross Beam Adaptors (T4-1 / T4-2 / T4-1W / T4-2W)
  • Capacity: 20 t
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T4-1 / T4-2 - Length: 920 mm
  • T4-1W / T4-2W - Length: 1020 mm
  • T4-1 og T4-1W - increases min. height by 100 mm
  • T4-2 og T4-2W - increases min. height by 145 mm


Adjustable Width Cross Beam Adaptors - T5-1 & T5-2





Adjustable Width Cross Beam Adaptors - T5-1 & T5-2
  • Capacity: 15-11,5 t
  • Length: 1060-1635 mm
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T5-1 increases min. height by 95 mm
  • T5-2 increases min. height by 140 mm


Innovative Cross Beam Adaptors - T6-1 & T6-2





Innovative Cross Beam Adaptors - T6-1 & T6-2

  • Capacity: 13 t
  • Hand wheel on the cross beam for easy and precise adjustment of lifting saddles without moving from the pit – ideal for inspection centres
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T6-1 / T6-2 - Length: 850-1350 mm
  • T6-1W / T6-2W - Length: 1120-1720 mm
  • T6-1 og T6-1W - increases min. height by 55 mm
  • T6-2 og T6-2W - increases min. height by 90 mm


LB - Diff Beam

Capacity: 20 t


Allows use of both rams to lift at one point



"V" Saddle - FW2



"V" Saddle - FW2
  • Suitable for lifting under various axles

"US" Saddle - FW2



"U" Saddle - FW2
  • Suitable for lifting various chassis profiles

FG100 & FG200 Ram Extensions



  • FG100 - These ram extensions increases the lifting height by 100 mm
  • FG200 - These ram extensions increases the lifting height by 200 mm

Wall Brackets for tool mounting






VB-1 Robust wall bracket for storage of
extensions and saddles (4 pcs.)
VB-2 Robust wall bracket for storage of
extensions and saddles (8 pcs.)
