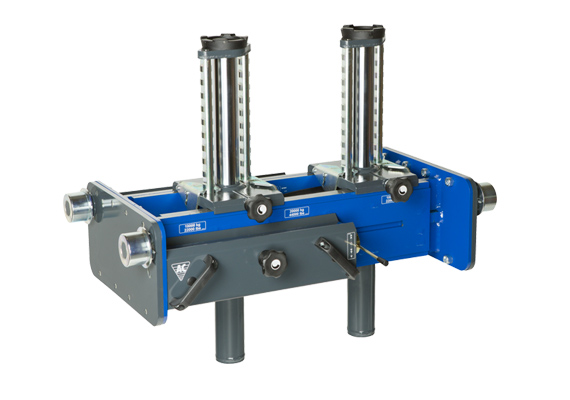

AC Hydraulics GD-2M Air hydraulic twin ram pit jack (10-20 tonnes)


The AC Hydraulic GD-2M is a traditional commercial pit jack, built like the GD-2 pit jack, but fitted with an automatic mechanical safety lock.

Again, an exceptionally well manufactured hydraulic pit jack designed to run on the rails of your own inspection pit.

This model is available in three different lifting capacities 10t - 15t - 20t.

The GD2 enjoys the following specification :

  • 2 individually controlled rams offer safe and balanced lifting
  • Rapid and precise air hydraulic unit with high speed ram travel
  • Simple modern design with control panel at ergonomical working height
  • Transversely sliding rams
  • Can be made to fit all pits due to its adjustable frame
  • Frame height is adjusted and set to the customers individual specifications
  • Comprehensive option range: cross beam, support bridge etc.
  • Supplied with 2 x100 mm extensions
  • When ordering fill out specification form

See the GD-2M in action by video




Twin Ram - Air hydraulic

Dimensions

Technical data

 GD100-2GD150-2GD200-2
Weight220 kg220 kg220 kg
Capacity10 t15 t20 t
Stroke420 mm420 mm420 mm
Min. height560 mm560 mm560 mm
Max. height945 mm945 mm945 mm
Width¹590-1410 mm590-1410 mm590-1410 mm
Depth650 mm650 mm650 mm
Lifting points²200-1160 mm200-1160 mm200-1160 mm
Air supply8-12 bar8-12 bar8-12 bar
Air consumption350 l/min350 l/min350 l/min


¹ Framewidth: 590-890 mm / 850-1150 mm / 1110-1410 mm

² Distance between lifting points: 200-640 mm / 200-990 mm / 200-1160 mm


Selection of adaptors available, if required - see below :

AB Support Bridge - 20t capacity




AB Support Bridge - 20t capacity

  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form



ABT Support Bridge - 20t capacity



ABT Support Bridge - 15t capacity
  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form



Cross Beam Adaptors - T4-1 / T4-2 / T4-1W / T4-2W





Cross Beam Adaptors (T4-1 / T4-2 / T4-1W / T4-2W)
  • Capacity: 20 t
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T4-1 / T4-2 - Length: 920 mm
  • T4-1W / T4-2W - Length: 1020 mm
  • T4-1 og T4-1W - increases min. height by 100 mm
  • T4-2 og T4-2W - increases min. height by 145 mm


Adjustable Width Cross Beam Adaptors - T5-1 & T5-2





Adjustable Width Cross Beam Adaptors - T5-1 & T5-2
  • Capacity: 15-11,5 t
  • Length: 1060-1635 mm
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T5-1 increases min. height by 95 mm
  • T5-2 increases min. height by 140 mm


Innovative Cross Beam Adaptors - T6-1 & T6-2





Innovative Cross Beam Adaptors - T6-1 & T6-2

  • Capacity: 13 t
  • Hand wheel on the cross beam for easy and precise adjustment of lifting saddles without moving from the pit – ideal for inspection centres
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T6-1 / T6-2 - Length: 850-1350 mm
  • T6-1W / T6-2W - Length: 1120-1720 mm
  • T6-1 og T6-1W - increases min. height by 55 mm
  • T6-2 og T6-2W - increases min. height by 90 mm


LB - Diff Beam

Capacity: 20 t


Allows use of both rams to lift at one point


FLTR Trolley



  • Practical trolley.                                                     Designed for mounting and dismounting of heavy duty jacking beams on lifts

  • Fitted with revolving wheels for easy manoeuvrability

"V" Saddle - FW2



"V" Saddle - FW2
  • Suitable for lifting under various axles

"US" Saddle - FW2



"U" Saddle - FW2
  • Suitable for lifting various chassis profiles

FG100 & FG200 Ram Extensions



  • FG100 - These ram extensions increases the lifting height by 100 mm
  • FG200 - These ram extensions increases the lifting height by 200 mm

Wall Brackets for tool mounting






VB-1 Robust wall bracket for storage of
extensions and saddles (4 pcs.)
VB-2 Robust wall bracket for storage of
extensions and saddles (8 pcs.)
