AC Hydraulics FL2 Twin Ram Heavy Duty Jacking Beam (air hydraulic)

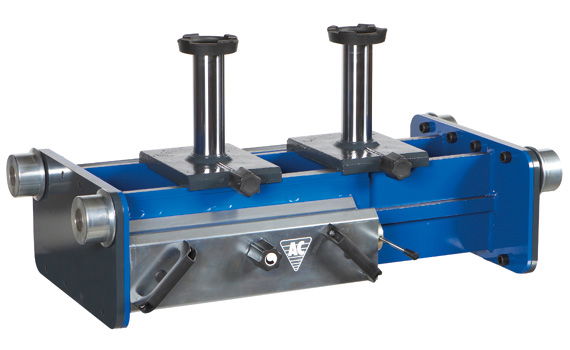

The AC Hydraulic FL2 is a Twin Ram Jacking Beam, which is exceptionally well manufactured and can be made to fit all lifts or inspection pits due to its adjustable frame.

This model is available in four different lifting capacities 6t, 12t, 16t & 20 tonnes

The FL2 enjoys the following specification :

  • 2 individually controlled rams offer safe and balanced lifting
  • Transversely sliding rams
  • Rapid and precise air hydraulic unit with high speed ram travel
  • Simple modern design with control panel at ergonomical working height
  • Can be made to fit all lifts due to its adjustable frame
  • Frame height is adjusted and set to the customers individual specifications
  • Dead man’s release and safety overload valve for optimum safety
  • Supplied with 2 x 100mm extensions
  • When ordering fill out specification form





Dimensions

Technical data


FL60-2
FL120-2
FL160-2
FL200-2
Weight
202 kg
202 kg
202 kg
202 kg
Capacity
6 t
12 t
16 t
20 t
Stroke
200 mm
200 mm
200 mm
200 mm
Min. height
305 mm
305 mm
305 mm
305 mm
Max. height
505 mm
505 mm
505 mm
505 mm
Width¹
590-1410 mm
590-1410 mm
590-1410 mm
590-1410 mm
Depth
665 mm
665 mm
665 mm
665 mm
Lifting points²
200-1160 mm
200-1160 mm
200-1160 mm
200-1160 mm
Air supply
8-12 bar
8-12 bar
8-12 bar
8-12 bar
Air consumption
350 l/min
350 l/min
350 l/min
350 l/min


¹ Framewidth: 590-890 mm / 850-1150 mm / 1110-1410 mm

² Distance between lifting points: 200-640 mm / 200-990 mm / 200-1160 mm

* The capacity of the jacking beam cannot exceed 0,66 x the lift capacity

Selection of adaptors available, if required - see below :

Cross Beam Adaptors - T4-1 / T4-2 / T4-1W / T4-2W





Cross Beam Adaptors (T4-1 / T4-2 / T4-1W / T4-2W)
  • Capacity: 20 t
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T4-1 / T4-2 - Length: 920 mm
  • T4-1W / T4-2W - Length: 1020 mm
  • T4-1 og T4-1W - increases min. height by 100 mm
  • T4-2 og T4-2W - increases min. height by 145 mm

Adjustable Width Cross Beam Adaptors - T5-1 & T5-2





Adjustable Width Cross Beam Adaptors - T5-1 & T5-2
  • Capacity: 15-11,5 t
  • Length: 1060-1635 mm
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T5-1 increases min. height by 95 mm
  • T5-2 increases min. height by 140 mm

Innovative Cross Beam Adaptors - T6-1 & T6-2





Innovative Cross Beam Adaptors - T6-1 & T6-2

  • Capacity: 13 t
  • Hand wheel on the cross beam for easy and precise adjustment of lifting saddles without moving from the pit – ideal for inspection centres
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T6-1 / T6-2 - Length: 850-1350 mm
  • T6-1W / T6-2W - Length: 1120-1720 mm
  • T6-1 og T6-1W - increases min. height by 55 mm
  • T6-2 og T6-2W - increases min. height by 90 mm

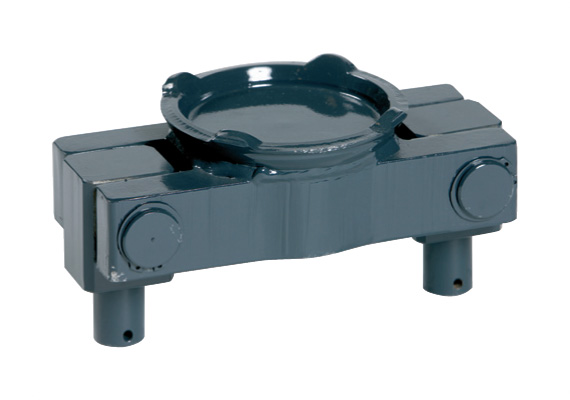

LB - Diff Beam

Capacity: 20 t


Allows use of both rams to lift at one point


FLTR Trolley



  • Practical trolley.                                                     Designed for mounting and dismounting of heavy duty jacking beams on lifts
  • Fitted with revolving wheels for easy manoeuvrability

"V" Saddle - FW2



"V" Saddle - FW2
  • Suitable for lifting under various axles

"US" Saddle - FW2



"U" Saddle - FW2
  • Suitable for lifting various chassis profiles

FG100 & FG200 Ram Extensions



  • FG100 - These ram extensions increases the lifting height by 100 mm
  • FG200 - These ram extensions increases the lifting height by 200 mm

Wall Brackets for tool mounting





VB-1 Robust wall bracket for storage of
extensions and saddles (4 pcs.)
VB-2 Robust wall bracket for storage of
extensions and saddles (8 pcs.)
