AC Hydraulics GGD150S Transmission Jack (15 tonnes)

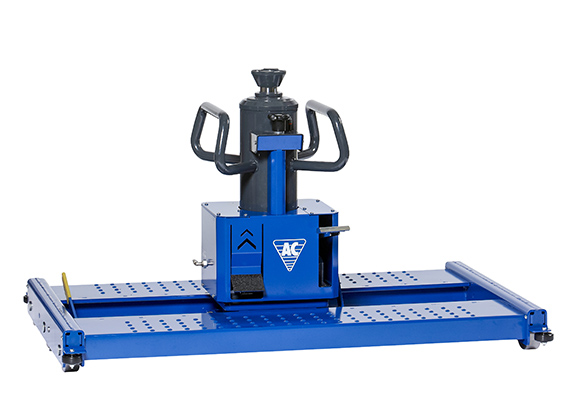

The AC Hydraulic GGD150S Transmission jack, is an air hydraulic pit jack running in rails, slim and very compact with a traversing ram assembly.

The GGD150S enjoys the following specification :

  • Traversing ram ensures a wide reach under the vehicle and enables the mechanic to move freely back and forth in the pit
  • Base frame wheels fitted with bearings for optimum manoeuvrability
  • Ideal for dismounting and re-mounting of gearboxes
  • Rapid and precise air hydraulic unit with high speed ram travel
  • Built-in manual foot pump for easy and precise adjustment
  • Foot operated leaving hands free
  • Dead man’s release and overload valve for optimum safety
  • Note :  To use this particular design of jack you inspection pit must be                                                            equipped with a pair of rails (100 x 100 x 10 mm customer supplied)
  • When ordering fill out specification form

See Video of the GGD150S in action



Easy to access pedal control
Dimensions


Technical data


GGD150S

Weight
250 kg

Capacity
15 / 15 t

Stroke
1285 mm

Min. height
905 mm

Max. height
2190 mm

Basewidth
According to pit width

Basedepth
940 mm

Cylinder diameter
Ø 60 mm

Air supply
8,5 - 12 bar

Air consumption
350 l/min


Selection of adaptors available, if required - see below :

AB Support Bridge - 20t capacity




AB Support Bridge - 20t capacity

  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form


ABT Support Bridge - 20t capacity



ABT Support Bridge - 15t capacity
  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form


AS3 Gearbox Saddle - 1t capacity



AS3 Gearbox Saddle

  • Capacity: 1 t
  • Dimension: 542x385x110 mm
  • 10º tilt in all directions for accurate dismounting and re-mounting of gearboxes
  • Low minimum height for wide range of applications
  • Fitted with 2 straps and 4 magnetic rubber support blocks
  • Weight: 24 kg
  • Fits: GD-1, GGD, GDT, VL10, VLT6 & VLT12


Cross Beam Adaptors - T4-1 / T4-2 / T4-1W / T4-2W





Cross Beam Adaptors (T4-1 / T4-2 / T4-1W / T4-2W)
  • Capacity: 20 t
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T4-1 / T4-2 - Length: 920 mm
  • T4-1W / T4-2W - Length: 1020 mm
  • T4-1 og T4-1W - increases min. height by 100 mm
  • T4-2 og T4-2W - increases min. height by 145 mm


Adjustable Width Cross Beam Adaptors - T5-1 & T5-2





Adjustable Width Cross Beam Adaptors - T5-1 & T5-2
  • Capacity: 15-11,5 t
  • Length: 1060-1635 mm
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T5-1 increases min. height by 95 mm
  • T5-2 increases min. height by 140 mm


Innovative Cross Beam Adaptors - T6-1 & T6-2





Innovative Cross Beam Adaptors - T6-1 & T6-2

  • Capacity: 13 t
  • Hand wheel on the cross beam for easy and precise adjustment of lifting saddles without moving from the pit – ideal for inspection centres
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T6-1 / T6-2 - Length: 850-1350 mm
  • T6-1W / T6-2W - Length: 1120-1720 mm
  • T6-1 og T6-1W - increases min. height by 55 mm
  • T6-2 og T6-2W - increases min. height by 90 mm


"V" Saddle - FW2



"V" Saddle - FW2
  • Suitable for lifting under various axles


"U" Saddle - FW2


"U" Saddle - FW2
  • Suitable for lifting various chassis profiles


Wall Brackets for tool mounting





VB-1 Robust wall bracket for storage of
extensions and saddles (4 pcs.)
VB-2 Robust wall bracket for storage of
extensions and saddles (8 pcs.)
