AC Hydraulics GGD150U Transmission Jack (15 tonnes)

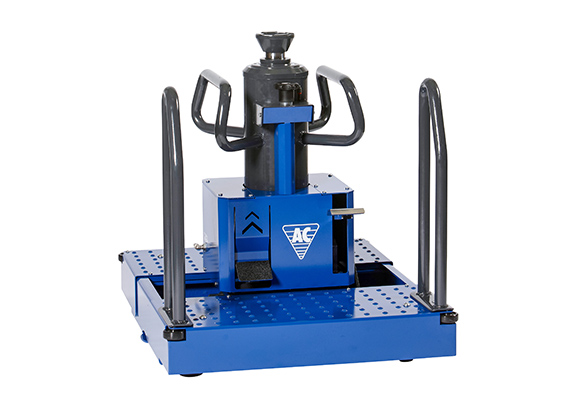

The AC Hydraulic GGD150U HGV Transmission jack, is exactly the same as the GGD150S model before, manufactured to the same exacting standard but benefitting from a traversing hydraulic cylinder making this unit even more diverse.

The GGD150U enjoys the following specification also :

  • Flexible pit jack for use in pit or under a lift
  • Traversing cylinder ensures a wide reach under the vehicle and enables the mechanic to move freely back and forth in the pit
  • Ideal for dis- and remounting of gearboxes due to telescopic cylinder
  • Built-in manual foot pump for easy and precise adjustment
  • Rapid and precise air hydraulic unit with high speed ram travel up and down
  • Base frame wheels fitted with bearings for optimum manoeuvrability
  • Spring loaded wheel support prevents unintended movements when lifting more than 800 kg
  • When ordering fill out specification form


Easy to access pedal control
Dimensions

Technical data

Weight250 kg
Capacity15 / 15 t
Stroke1285 mm
Min. height920 mm
Max. height2205 mm
Traversing cylinder250 mm
Basewidth / Basedepth845 / 1075 mm
Cylinder diameterØ 60 mm
Air supply8,5 - 12 bar
Air consumption350 l/min


Selection of adaptors available, if required - see below :

AB Support Bridge - 20t capacity




AB Support Bridge - 20t capacity

  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form


ABT Support Bridge - 20t capacity



ABT Support Bridge - 15t capacity
  • For safe and stable support of the vehicle
  • The open frame offers optimum traversing cylinder mobility
  • With leaf spring wheels for easy transport along the pit
  • Usable with various extensions and saddles: FG100, FG200, FW2 and US
  • When ordering fill out specification form


AS3 Gearbox Saddle - 1t capacity



AS3 Gearbox Saddle

  • Capacity: 1 t
  • Dimension: 542x385x110 mm
  • 10º tilt in all directions for accurate dismounting and re-mounting of gearboxes
  • Low minimum height for wide range of applications
  • Fitted with 2 straps and 4 magnetic rubber support blocks
  • Weight: 24 kg
  • Fits: GD-1, GGD, GDT, VL10, VLT6 & VLT12


Cross Beam Adaptors - T4-1 / T4-2 / T4-1W / T4-2W





Cross Beam Adaptors (T4-1 / T4-2 / T4-1W / T4-2W)
  • Capacity: 20 t
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T4-1 / T4-2 - Length: 920 mm
  • T4-1W / T4-2W - Length: 1020 mm
  • T4-1 og T4-1W - increases min. height by 100 mm
  • T4-2 og T4-2W - increases min. height by 145 mm


Adjustable Width Cross Beam Adaptors - T5-1 & T5-2





Adjustable Width Cross Beam Adaptors - T5-1 & T5-2
  • Capacity: 15-11,5 t
  • Length: 1060-1635 mm
  • Ideal for supporting axle, whilst allowing work to be done on the differential gear
  • Offers increased safety – divides the load over 2 lifting points
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T5-1 increases min. height by 95 mm
  • T5-2 increases min. height by 140 mm


Innovative Cross Beam Adaptors - T6-1 & T6-2





Innovative Cross Beam Adaptors - T6-1 & T6-2

  • Capacity: 13 t
  • Hand wheel on the cross beam for easy and precise adjustment of lifting saddles without moving from the pit – ideal for inspection centres
  • Usable with various extensions and saddles: FG100, FG200, FW2, US
  • T6-1 / T6-2 - Length: 850-1350 mm
  • T6-1W / T6-2W - Length: 1120-1720 mm
  • T6-1 og T6-1W - increases min. height by 55 mm
  • T6-2 og T6-2W - increases min. height by 90 mm


"V" Saddle - FW2



"V" Saddle - FW2
  • Suitable for lifting under various axles


"U" Saddle - FW2


"U" Saddle - FW2
  • Suitable for lifting various chassis profiles


Wall Brackets for tool mounting





VB-1 Robust wall bracket for storage of
extensions and saddles (4 pcs.)
VB-2 Robust wall bracket for storage of
extensions and saddles (8 pcs.)
